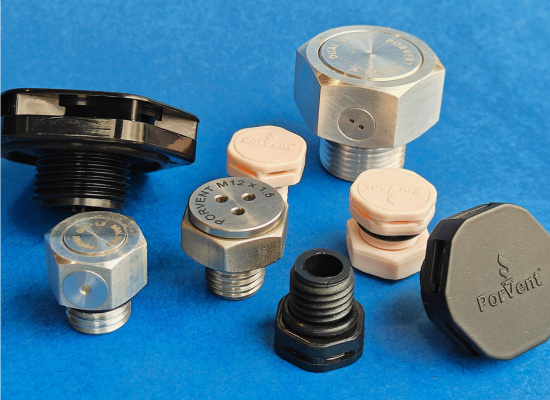

Screw-in Vents
Screw-in vents are one of the most common ways to incorporate a vent in a battery pack or an electronic enclosure. Screw-in vents have a threaded base that can be screwed into a pre-drilled hole in the enclosure wall. Screw-in vents are suitable for applications that require high IP ratings (up to IP69K) and high airflow rates. PorVent® screw-in vents have a robust design and a high-quality microporous membrane that provides excellent venting performance and protection.
- Threaded attachment provides a robust and durable connection
- Secure & reliable fitment that withstands high pressure and vibration
- Rugged housing and durable materials (PA6, SS316L & AL HE30) make them suitable for heavy-duty applications
- Various sizes to suit different applications
- Hexagonal head for easy installation with a wrench or a socket driver

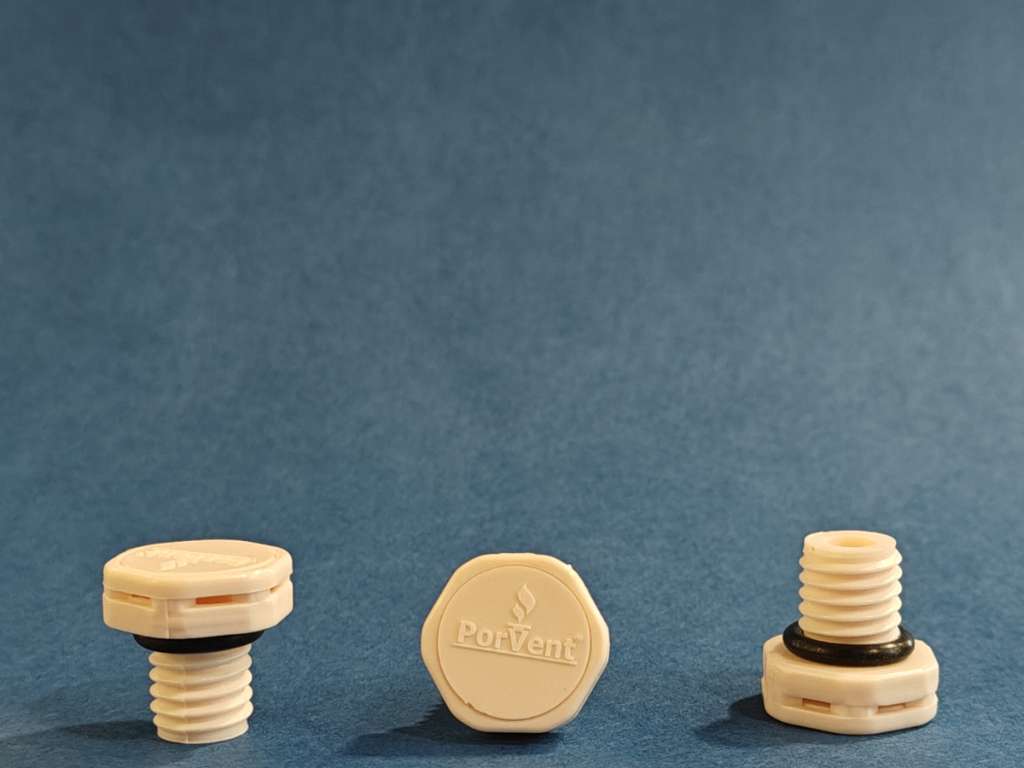

M10
- Operating Principle: Breathing: Microporous Membrane, Degassing: Membrane Burst
- Fitment Specification: M10 x 1.5 6g
- Material: Polyamide 6
- Membrane Options: Hydrophobic, Oleophobic
- IP Rating: IP66/67/6K9K
M12
- Operating Principle: Breathing: Microporous Membrane, Degassing: Membrane Burst
- Fitment Specification: M12 x 1.5 6g
- Material: Polyamide 6
- Membrane Options: Hydrophobic, Oleophobic
- IP Rating: IP66/67/68/6K9K

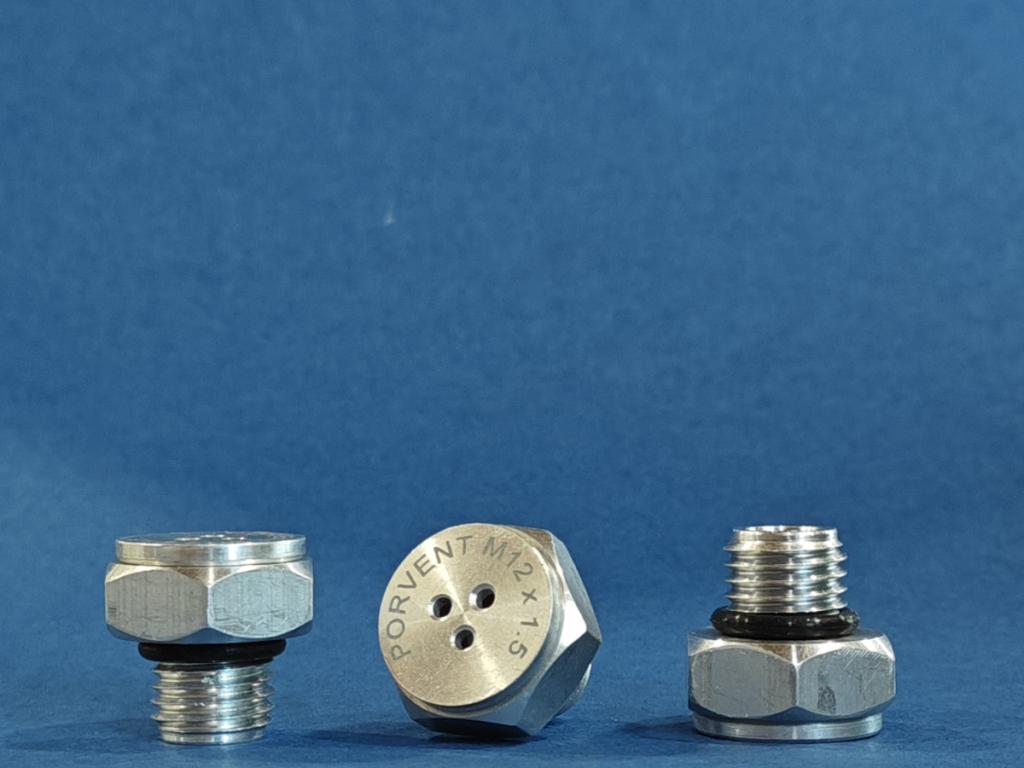

M12 SS
- Operating Principle: Breathing: Microporous Membrane, Degassing: Membrane Burst
- Fitment Specification: M12 x 1.5 6g
- Material: Stainless Steel 316L
Membrane Options: Hydrophobic, Oleophobic - IP Rating: IP66/68/6K9K

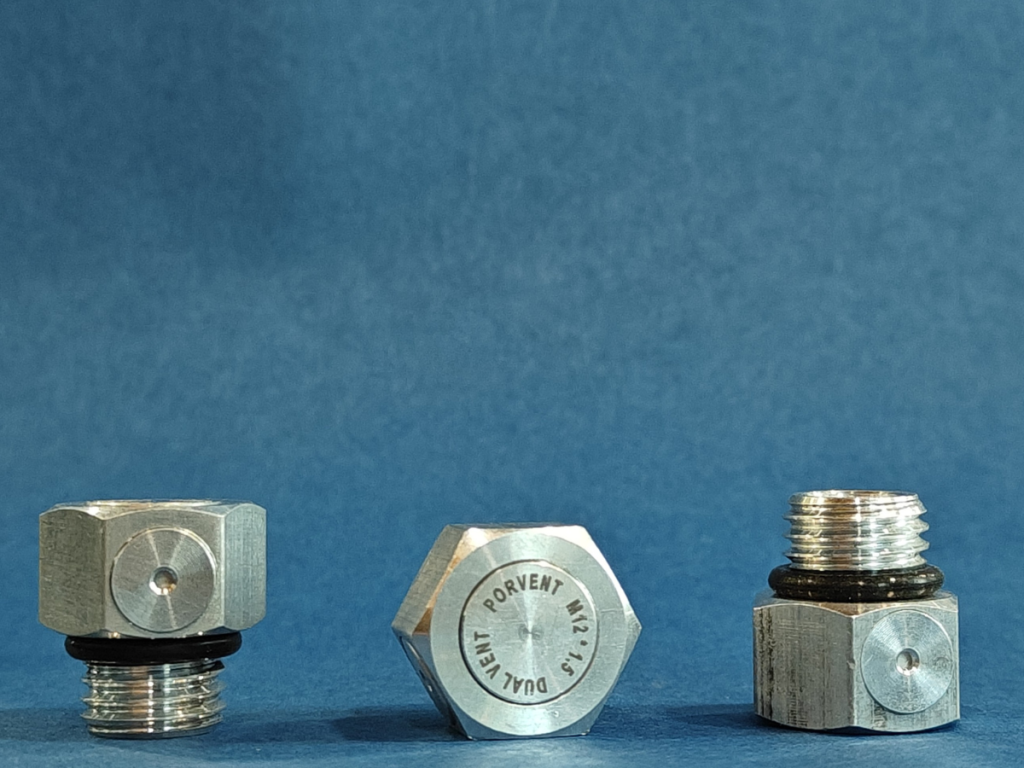

M12 AL
- Operating Principle: Breathing: Microporous Membrane, Degassing: Membrane Burst
- Fitment Specification: M12 x 1.5 6g
- Material: Aluminium HE30
- Membrane Options: Hydrophobic, Oleophobic
- IP Rating: IP66/67/6K9K
M12 Dual
- Operating Principle: Breathing: Microporous Membrane, Degassing: Mechanical Spring Valve
- Fitment Specification: M12 x 1.5 6g
- Material: Aluminium HE30
- Membrane Options: Hydrophobic, Oleophobic
- IP Rating: IP66/68/6K9K

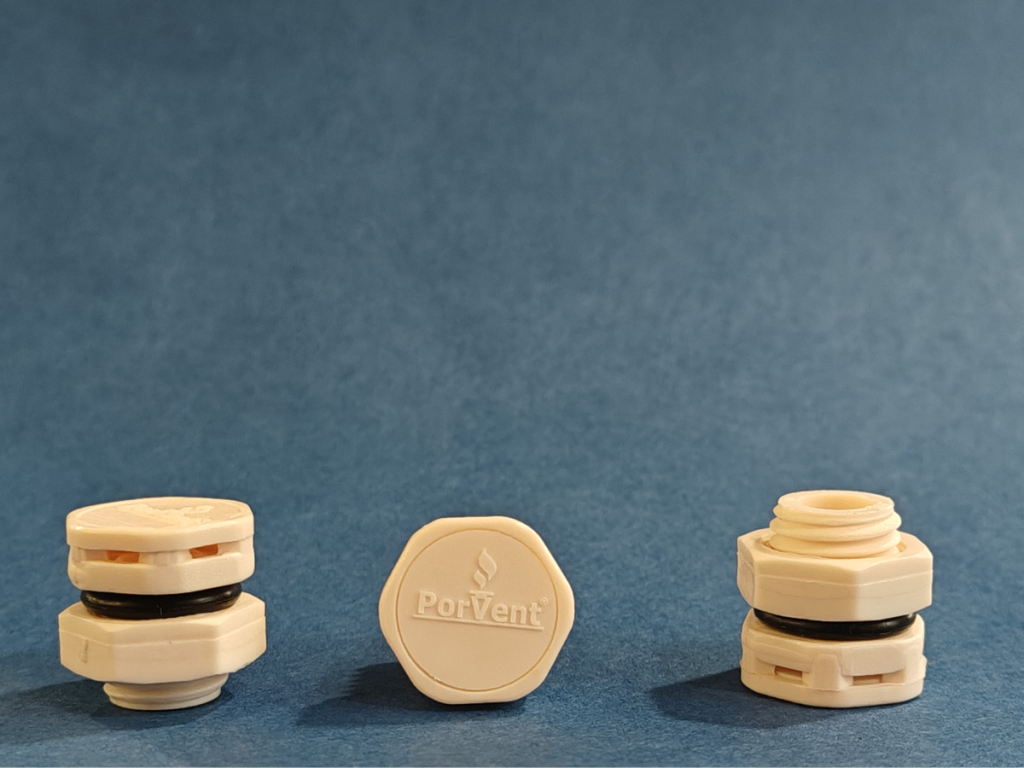

M14
- Operating Principle: Breathing: Microporous Membrane, Degassing: Membrane Burst
- Fitment Specification: M14 x 1.5 6g
- Material: Polyamide 6
- Membrane Options: Hydrophobic, Oleophobic
- IP Rating: IP66/67/6K9K
Early Burst M14
- Operating Principle: Breathing: Microporous Membrane, Degassing: Early Membrane Burst with Burst Pin
- Fitment Specification: M14 x 1.5 6g
- Material: Polyamide 6
- Membrane Options: Hydrophobic, Oleophobic
- IP Rating: IP66/67/6K9K

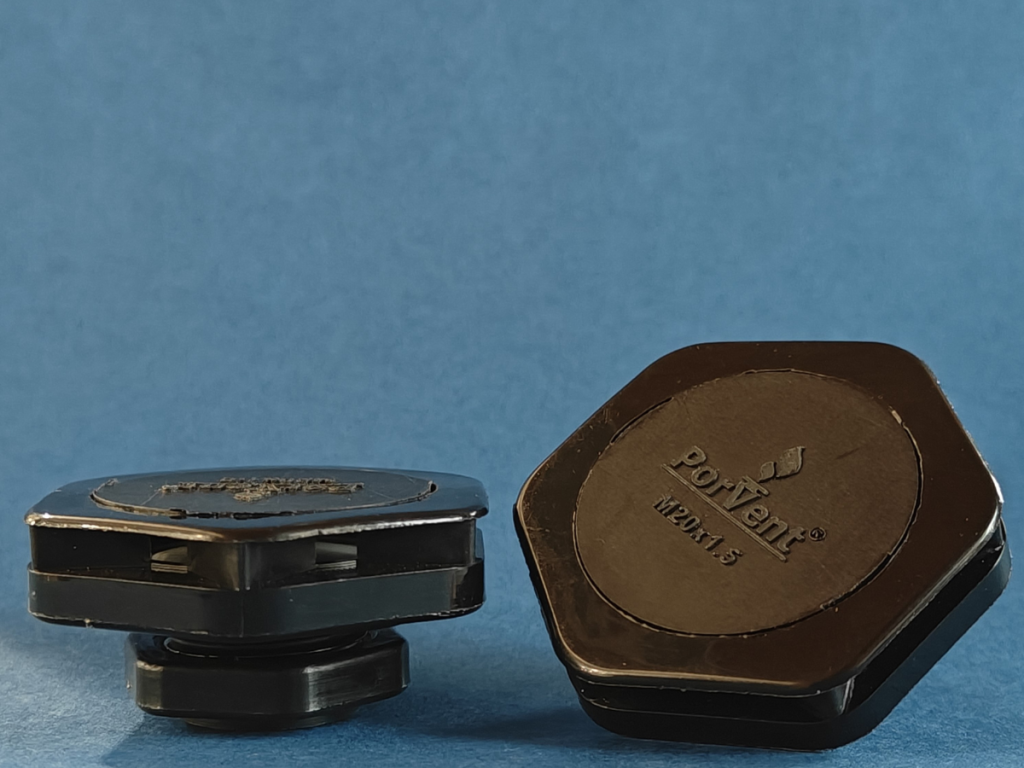

M20
- Operating Principle: Breathing: Microporous Membrane, Degassing: Membrane Burst
- Fitment Specification: M20 x 1.5 6g
- Material: Polyamide 6
- Membrane Options: Hydrophobic, Oleophobic
- IP Rating: IP66/67/6K9K

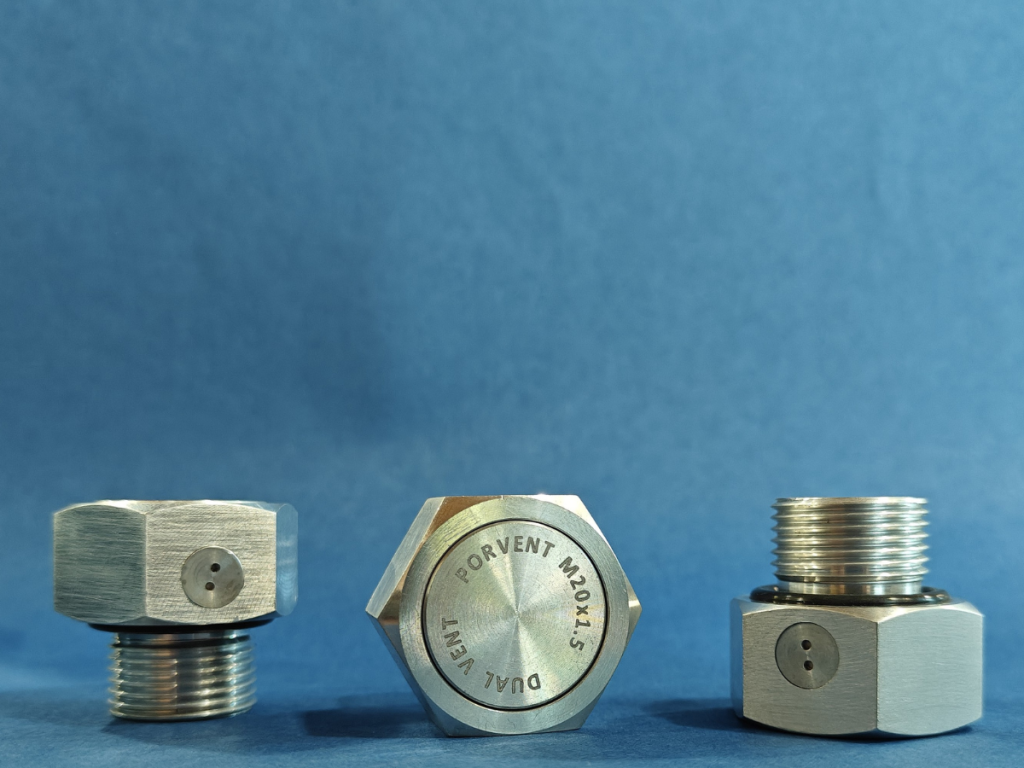

M20 Dual
- Operating Principle: Breathing: Microporous Membrane, Degassing: Mechanical Spring Valve
- Fitment Specification: M20 x 1.5 6g
- Material: Aluminium HE30
- Membrane Options: Hydrophobic, Oleophobic
- IP Rating: IP66/68/6K9K
